Setting Loop

The ring settings grid — cards with real variant dots, compatibility filtering inside the Ring Builder, and the same pagination and AJAX as the diamond loop.

3 min readUpdated 2026-08-15

The Setting Loop is the diamond loop's sibling for ring settings. It queries your WooCommerce ring-setting products and renders them as cards.

If you have read Diamond Loop, most of this will be familiar — the card sources, toolbar, pagination modes and AJAX behaviour are the same engine.

What it needs

WooCommerce, active with the NivoSync integration on, and products in the ring-settings category. Without those the widget tells you so rather than rendering an empty grid.

The cards

The same five skins, with the same three card sources: the addon's skins, the core theme's card, or your own Elementor loop-item template.

What is specific to settings:

  • Metal variant dots. Each card shows a dot per metal the product actually offers. They are not decorative — clicking one swaps the card's image and price to that variation, so a shopper comparing rose against white gold does it in the grid without opening anything.
  • A "from" price, because a setting with metal variations has a range rather than a price. The prefix is yours to write.
  • A short description, trimmed at a word boundary to a character count you set.

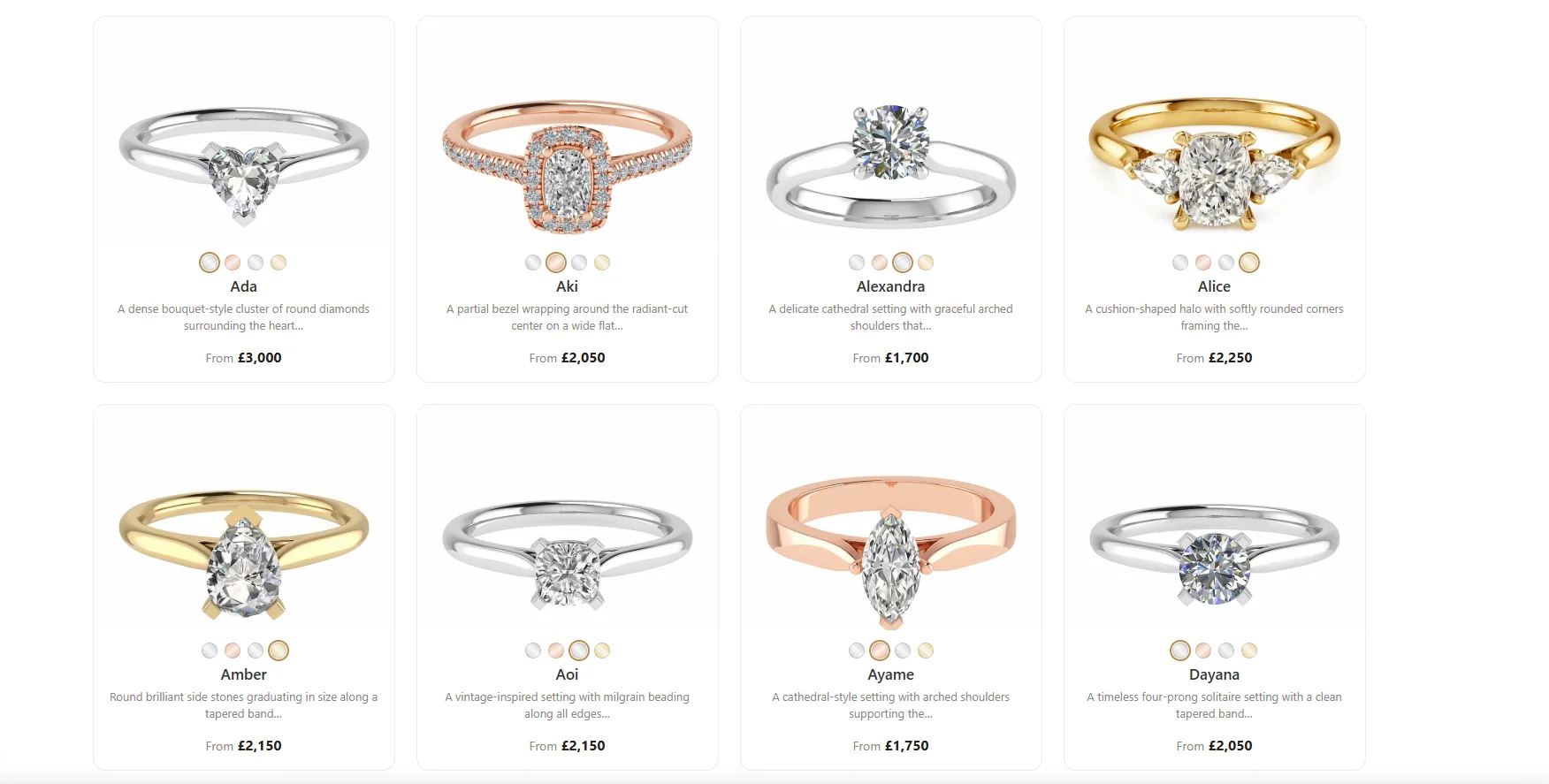

The dots are live: clicking one swaps that card's image and price.

Inside the Ring Builder

Two controls change the loop's behaviour when a diamond has already been chosen:

  • Chosen-diamond banner — a summary card above the grid showing the stone, with a link back to the diamond step.
  • Only compatible settings — restricts the grid to settings that fit the chosen diamond's shape. This is the core's rule, and it is why a shopper who picked an emerald is not offered a head cut for a round.

With no diamond in the session, the grid shows everything and the banner shows an invitation to start.

Filtering

The loop listens to the setting filter widgets on the page — metal, style, shape and the composite Settings Filter Bar — and updates over AJAX without a reload. See Setting filters.

Sorting and pagination

Sort by popularity, price ascending or descending, or newest. Pagination offers the same three modes as the diamond loop: page numbers, load more, or infinite scroll.

Empty states

  • No settings found shows your own message.
  • In the editor with no ring-setting products, the loop shows sample settings so you can design. They are editor-only.
